baffled stainless oil filler neck

Reply Subscribe

Thread Tools

Search this Thread

03-16-2010 | 10:52 PM

turbozee

Thread Starter

Junior Member

Joined: May 2008

Posts: 1

Anyone interested in stainless steel oil filler necks? My plastic one cracked so I decided to make one out of stainless. Each one is TIG welded. I also added baffles to deter oil from getting into your PCV/breather hoses. Features 3/8" npt bungs so you can run AN fittings or simple brass barbs. Here are some pictures:

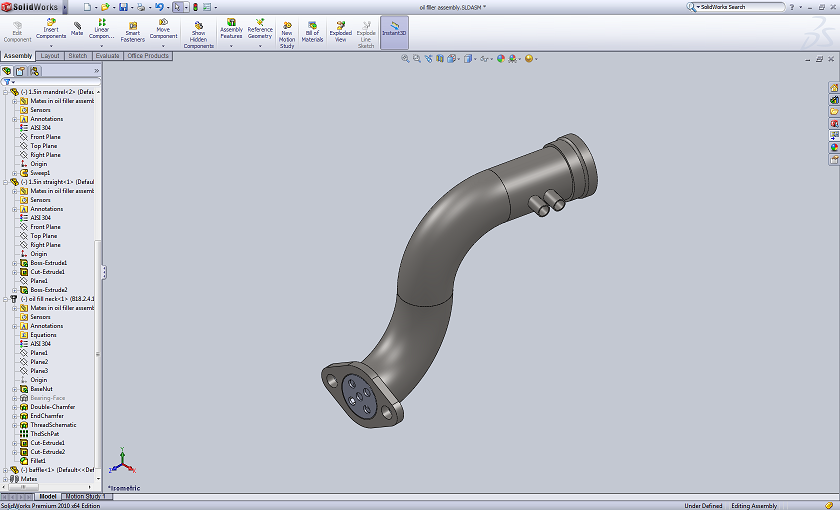

Name: baffle2.png
Views: 899
Size: 127.7 KB

Name: baffle2.png
Views: 899
Size: 127.7 KB

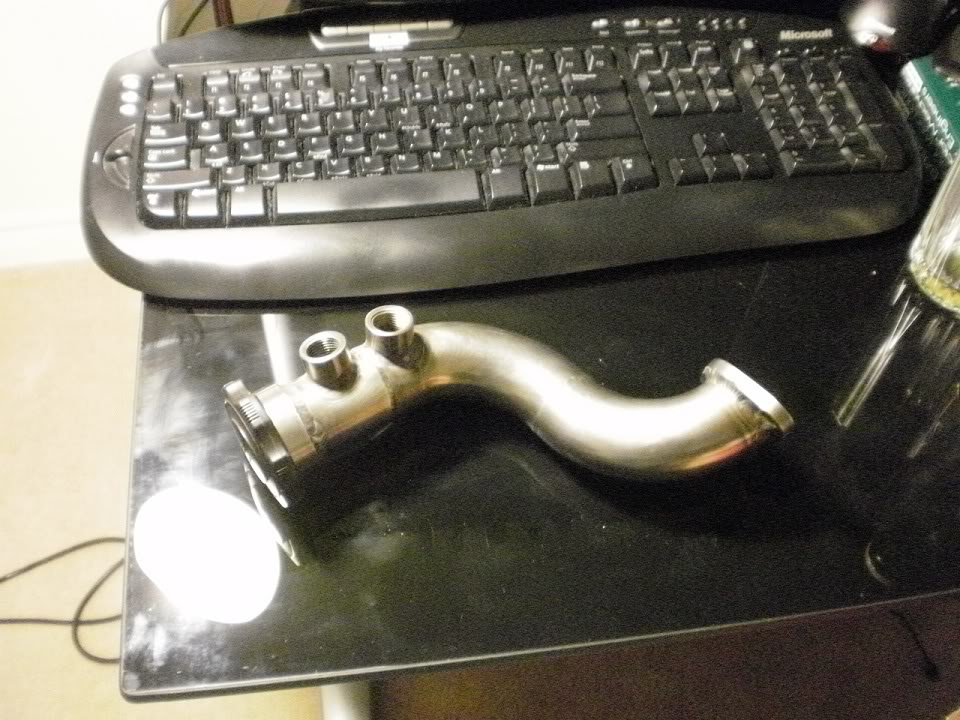

Name: oil_filler8.jpg
Views: 997
Size: 154.1 KB

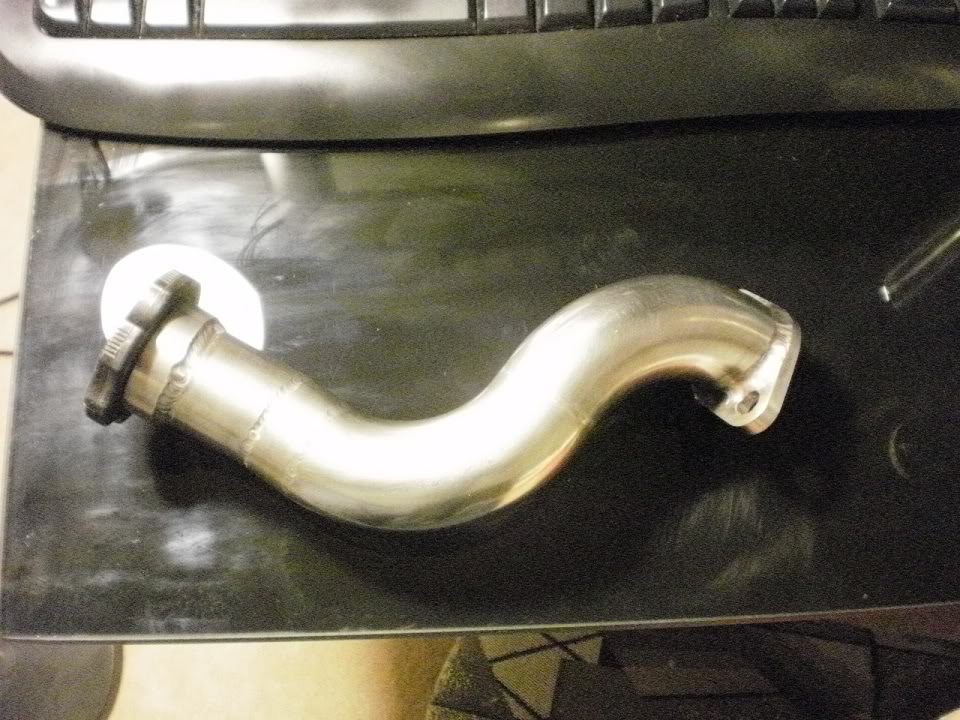

Name: oil_filler7.jpg
Views: 1049
Size: 161.7 KB

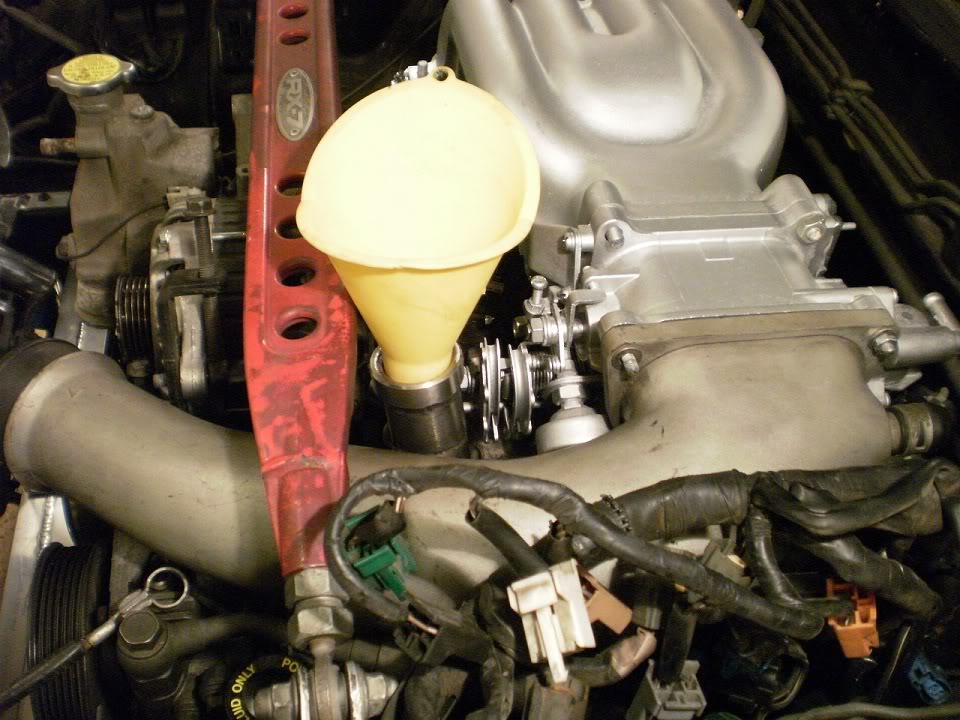

Name: oil_filler5.jpg
Views: 961
Size: 127.4 KB

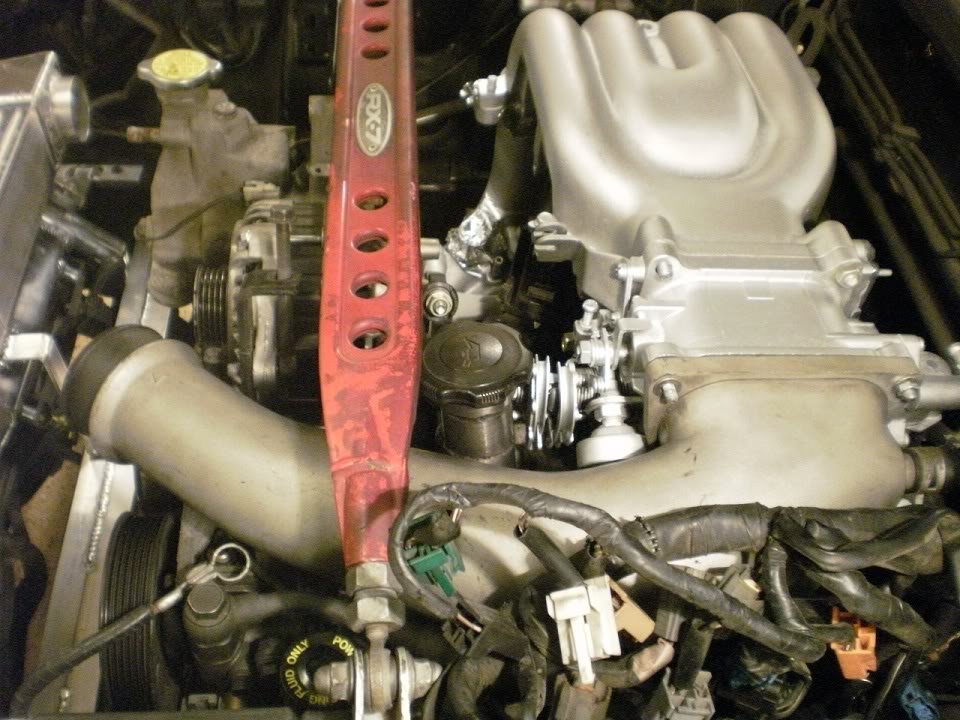

Name: oil_filler9.jpg
Views: 986
Size: 135.4 KB

I was to do a group buy based on the responses I get -- $110 without fittings and $115 with brass fittings for group only. After that retail will be around $135 without fittings and $140 with fittings.

I do a lot of fabrication locally and this is my first product that I want to produce in larger quantities. I appreciate any comments!
