WTF is this screw? http://www.rx7club.com/forum/attachment.ph...&postid=1872486



Thanks

-Ross



Wow, the page didn't load. Site must be down. What a surprise! Next time load the image over here, some of us don't like going to the shitty forum.

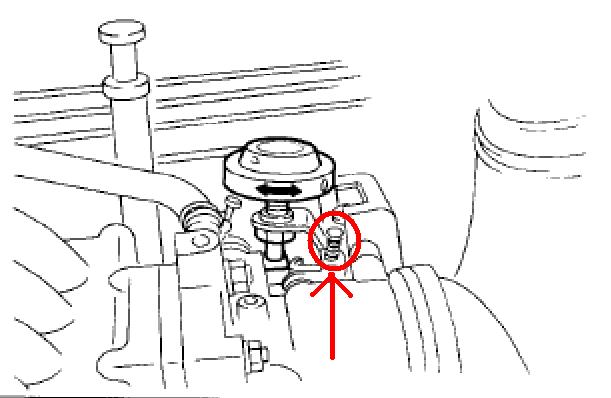

Trying to upload it... it's the one that points straight up, has a spring on it, right beside the dashpot, on a s5 t2 tb, on the back of the tb. It's what's been causing my idle misfortunes. I adjusted it, and its alot better, but i cant remember which way i adjusted it, or how to set it properly. and taking the TMIC off every time to adjust it is getting rather tedious.



Thanks!!!



here it is



that looks like the thermowax adjusting screw, thats one to leave alone unless you are haveing a problem with the thermowax. the shop manual gives a measurement for you though



mike



Nope. the thermowax is on the front side of the TB. This is on the back. There are two thermowax adjustment screws, and they're both on the front.



I think i might have figured it out though... looks like its a "throttle valve clearance adjustment screw".



Unfortunately, there's no way to adjust it properly without taking the elbow off
